MSAT-G2 PSTN Telephone Interface

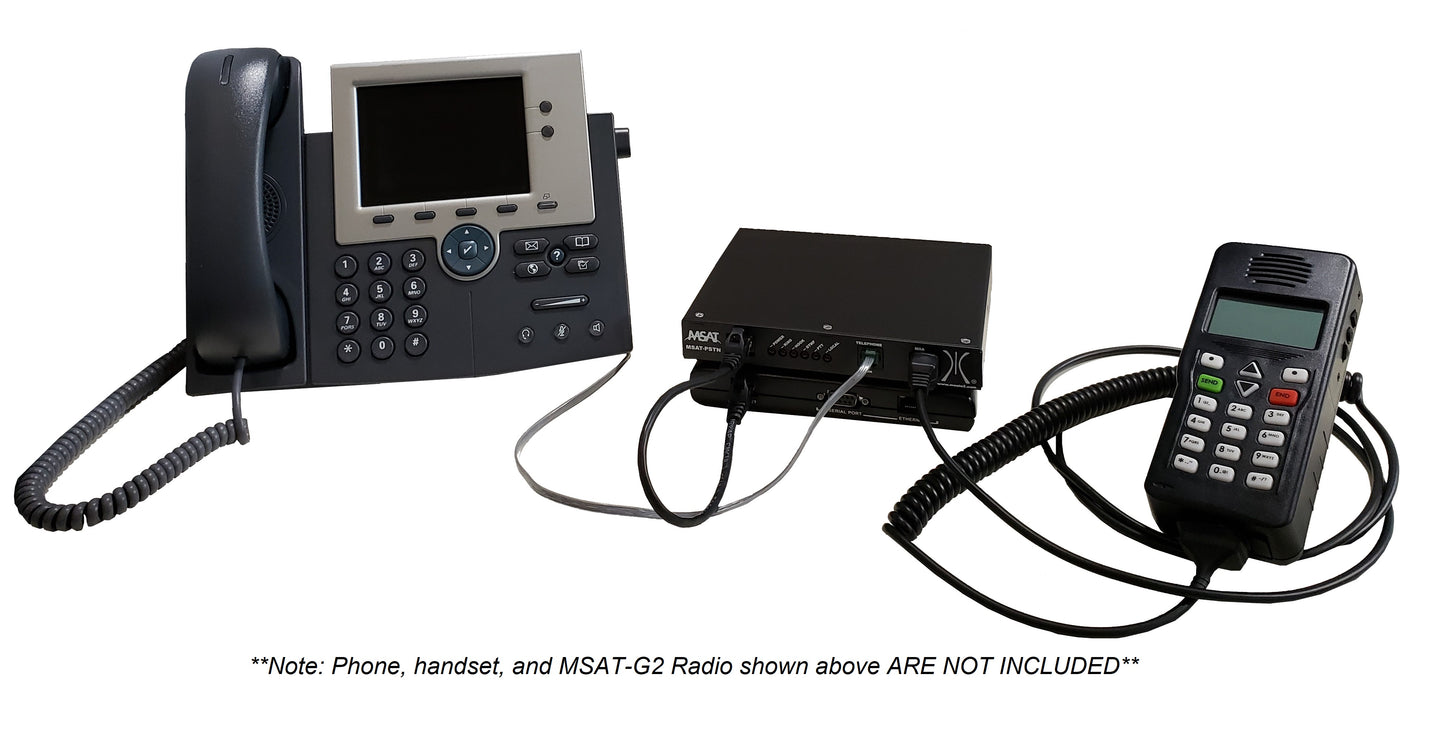

The MSAT-PSTN Interface enables MSAT-G2 radio operators to access MSAT voice and PTT service functions via an analog telephone. When using a cordless analog phone, the interface extends satellite phone coverage throughout buildings. The device also facilitates integration of the MSAT-G2 radio into a Private Branch Exchange (PBX) system. Now organizations can easily incorporate MSAT services into their office telephone networks, ensuring reliable back-up capability when it is needed the most.

Features:

• Analog telephone connection (RJ-11)
• Access to PTT functions via analog phone (PTT, talkgroup toggling etc.) PTT supported by pressing either a '*' to PTT the radio or a '#' to return back to receive mode.
• Differential Ringing - Different ring tones identify different call types (Telephone or PTT)
• Answers in a specific number of rings and allows the user to command the radio from phone line.

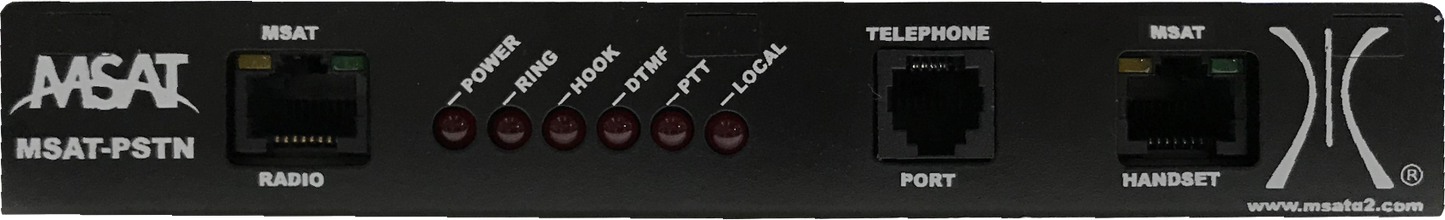

• Bright LED display on front of the MSAT-PSTN aids in initial setup and provides real time feedback during operation.

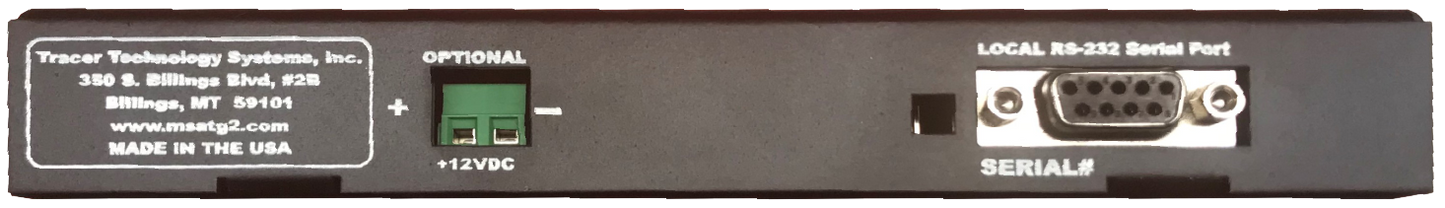

• Power is provided by the MSAT-G2 on the radio end and +12V power is required on the handset end (power module included).
• Connect MSAT-G2 into a PBX for more flexible usage.
• The user can also change user talk groups from the phone DTMF pad.

Orders Include:

• MSAT-PSTN Module
• 1' Network Cable (to link PSTN to MSAT-G2 Radio)
• MSAT-PSTN Bracket & 5 Bracket Screws
• MSAT-PSTN Manual
